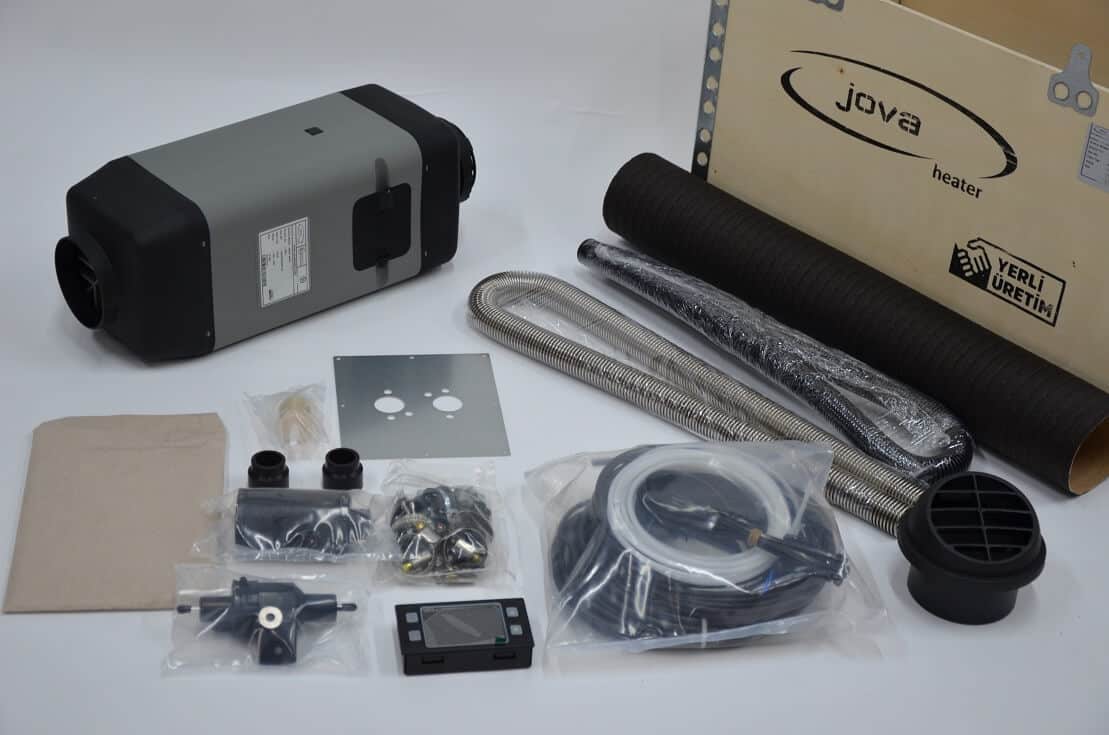

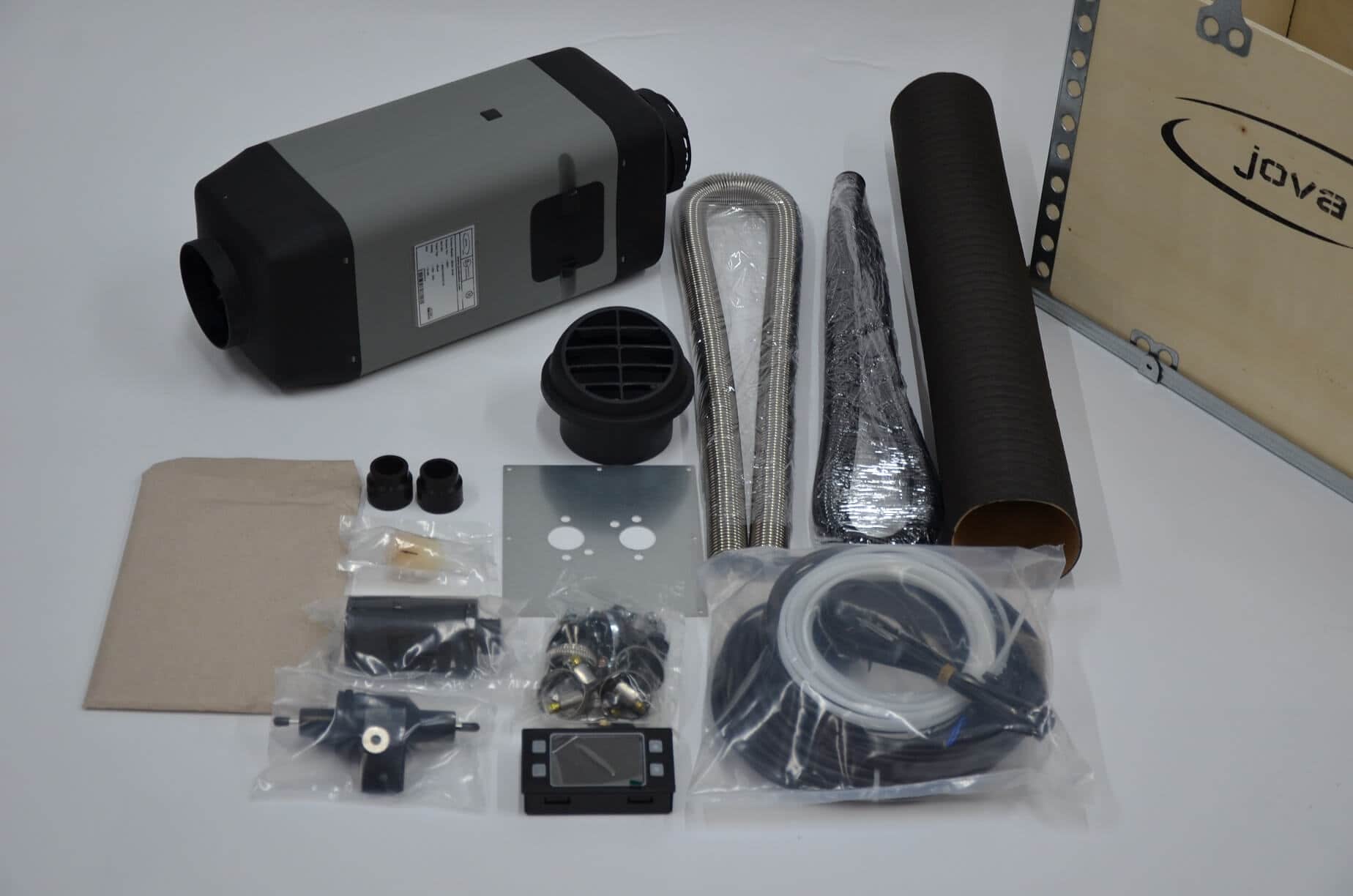

6KW (standard kit) – (Working Voltage 10 32VDC) With this model, both the driver's cabin and the cargo compartments are heated quickly and effectively in a short time. Digital control system is included.
10KW (standard kit) (Working Voltage 18 – 32VDC) This model provides superior comfort thanks to its advanced control system. Thanks to the electronic control system, energy consumption and sound levels have been significantly reduced.

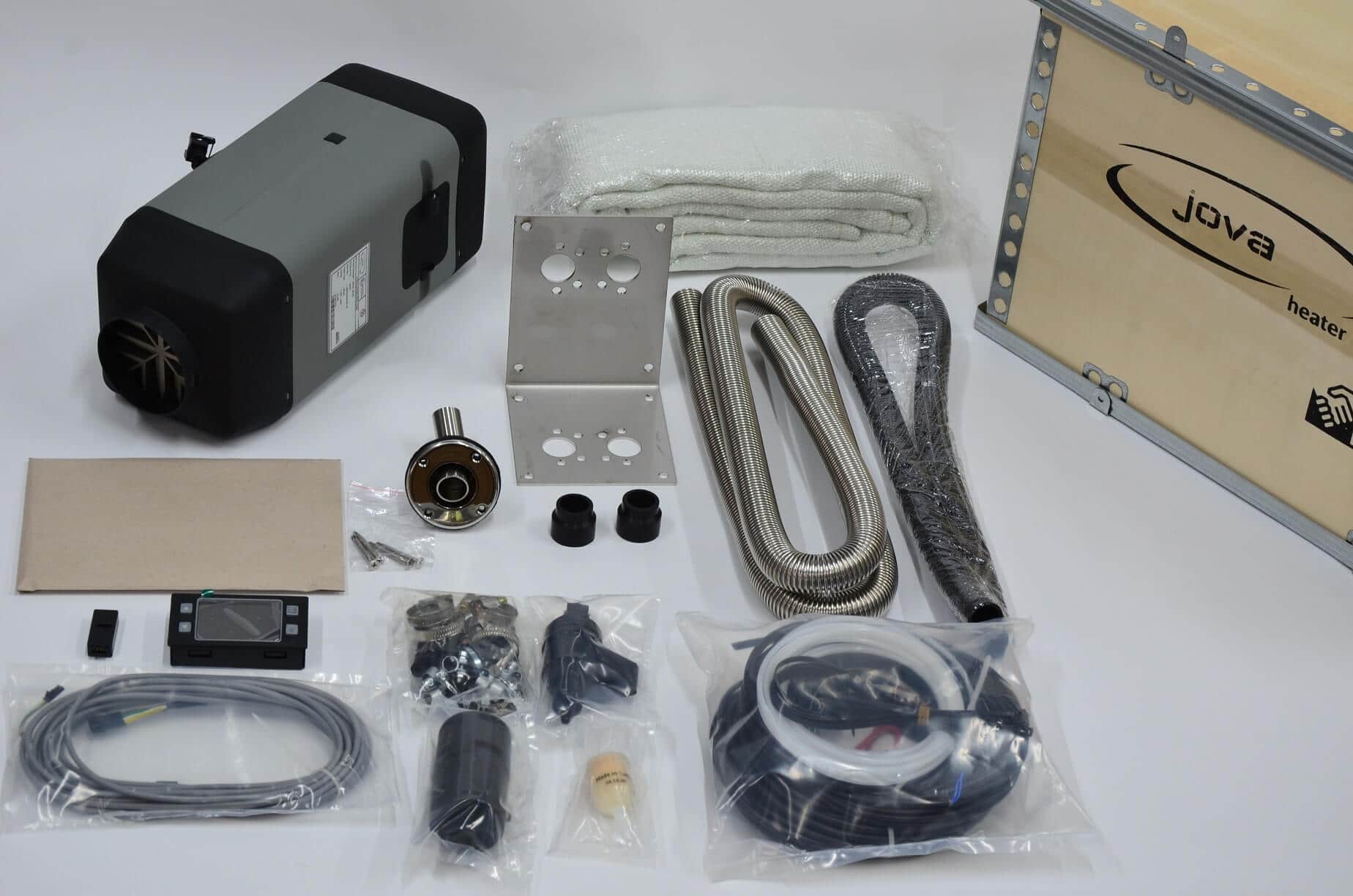

6KW (standard + marine kit) – (Working Voltage 10 32VDC) This model provides superior comfort thanks to its advanced control system. Thanks to the improved design, the noise level has been significantly reduced.
10KW (standard + marine kit) – (Working Voltage 18 – 32VDC) This model is an economical solution for hardware retrofitting thanks to its quick and easy assembly. Multiple devices can be connected to a single control module to heat larger cargo spaces if required. Wifi module is also enable but optional.
Technical Specifications (6KW)
-
Heat Power (KW)6KW max.
-
FuelDiesel
-
Rated Voltage12VDC, 24VDC
(10-32VDC) -
Rated Power Consumption (W)96W max.
-
Fuel Consumption0.65 l/h
-
Dimensions435 x 164 x 173 mm 17,1 x 6,4 x 6,8 inc
-
Working Temperature-40/+40
-
Quality ComplianceFCC, CE, RoHS
-
CERTIFICATIONECE R122ECE R10MIL-STD 461 F/GMIL-STD 810 GMIL-STD 1275 E
Technical Specifications (10KW)
-
Heat Power (KW)10KW max.
-
FuelDiesel
-
Rated Voltage24VDC
(18-32VDC) -
Rated Power Consumption (W)120W max.
-
Fuel Consumption0.80 l/h
-
Dimensions435 x 164 x 173 mm 17,1 x 6,4 x 6,8 inc
-
Working Temperature-40/+40
-
Quality ComplianceFCC, CE, RoHS
-
CERTIFICATIONECE R122ECE R10MIL-STD 461 F/GMIL-STD 810 GMIL-STD 1275 E
